Contact

If you see anything in these pages that needs to be added or corrected, please don't hesitate to contact me.

To prevent my e-mail address from being grabbed by bots and spammers, please interpret it below as necessary—sorry for the inconvenience:

gdonner at gregdonner dot org

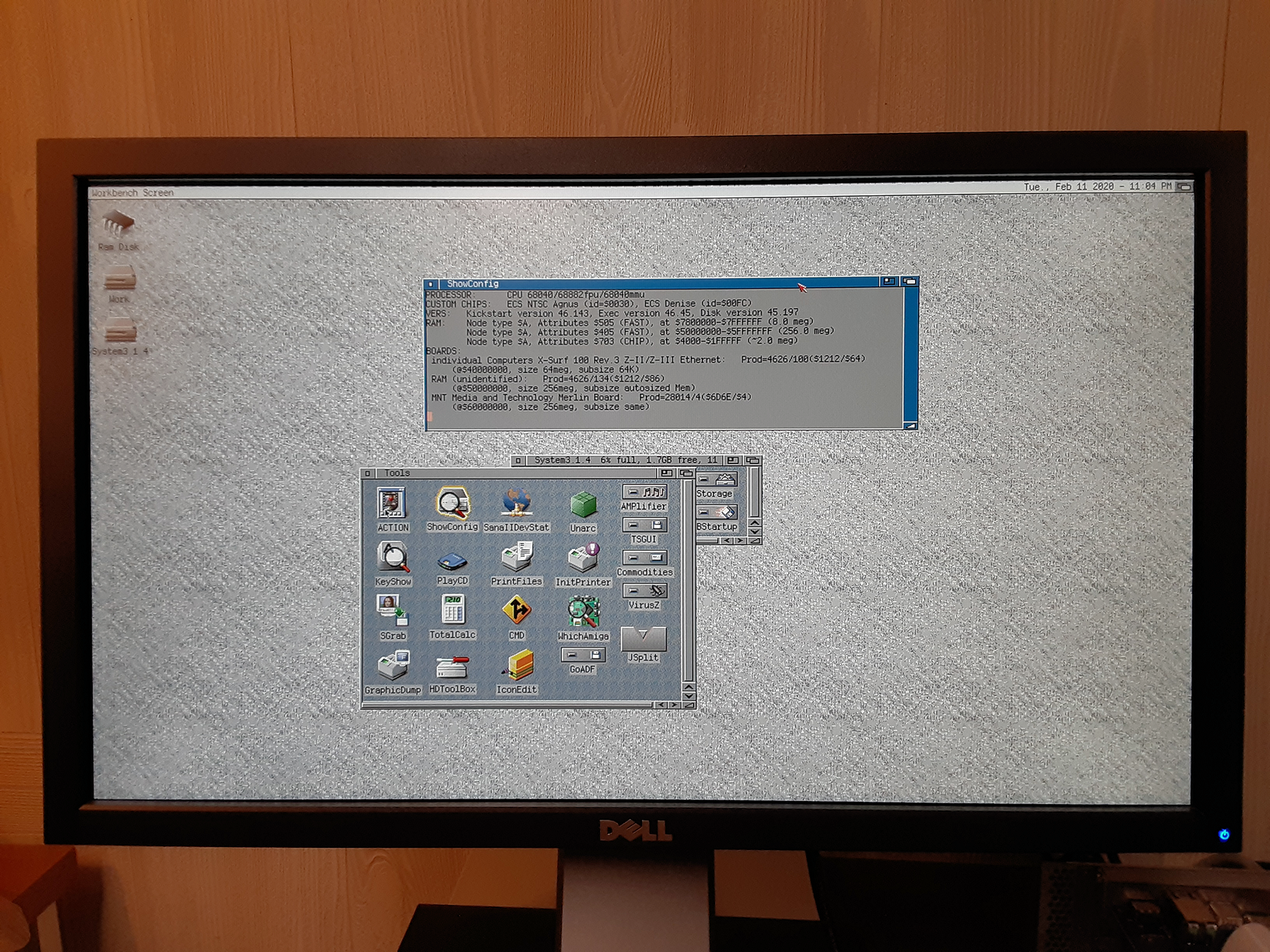

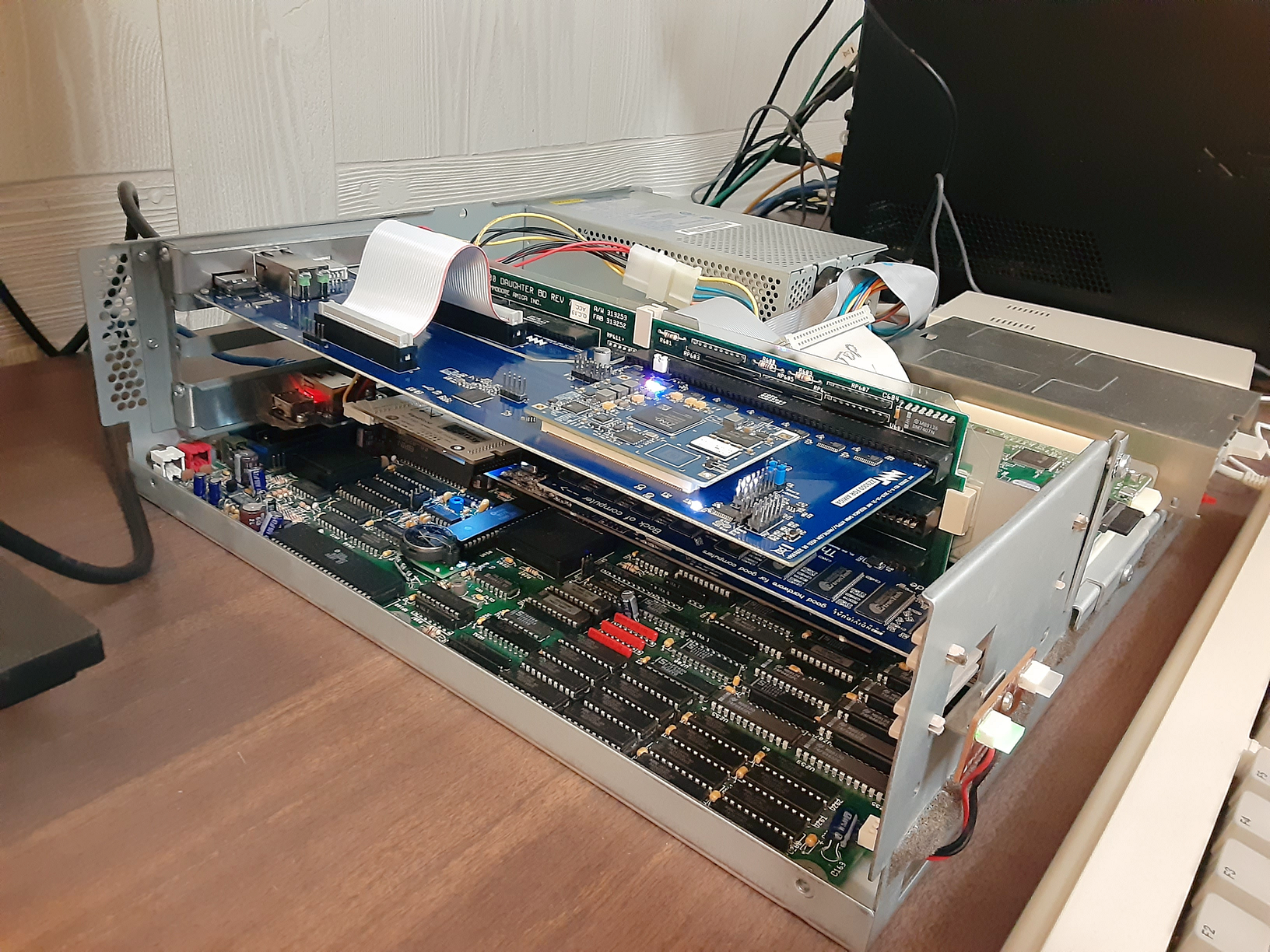

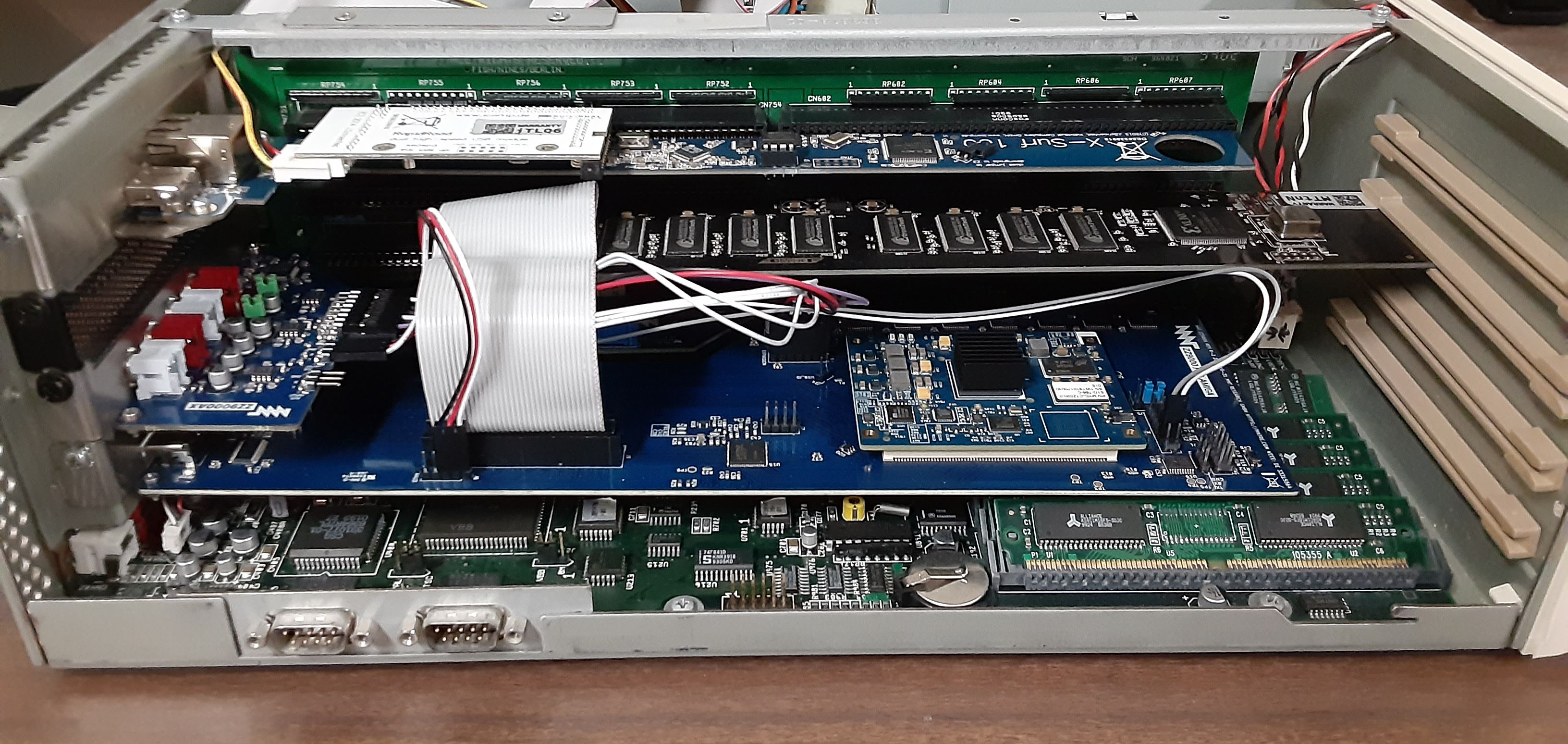

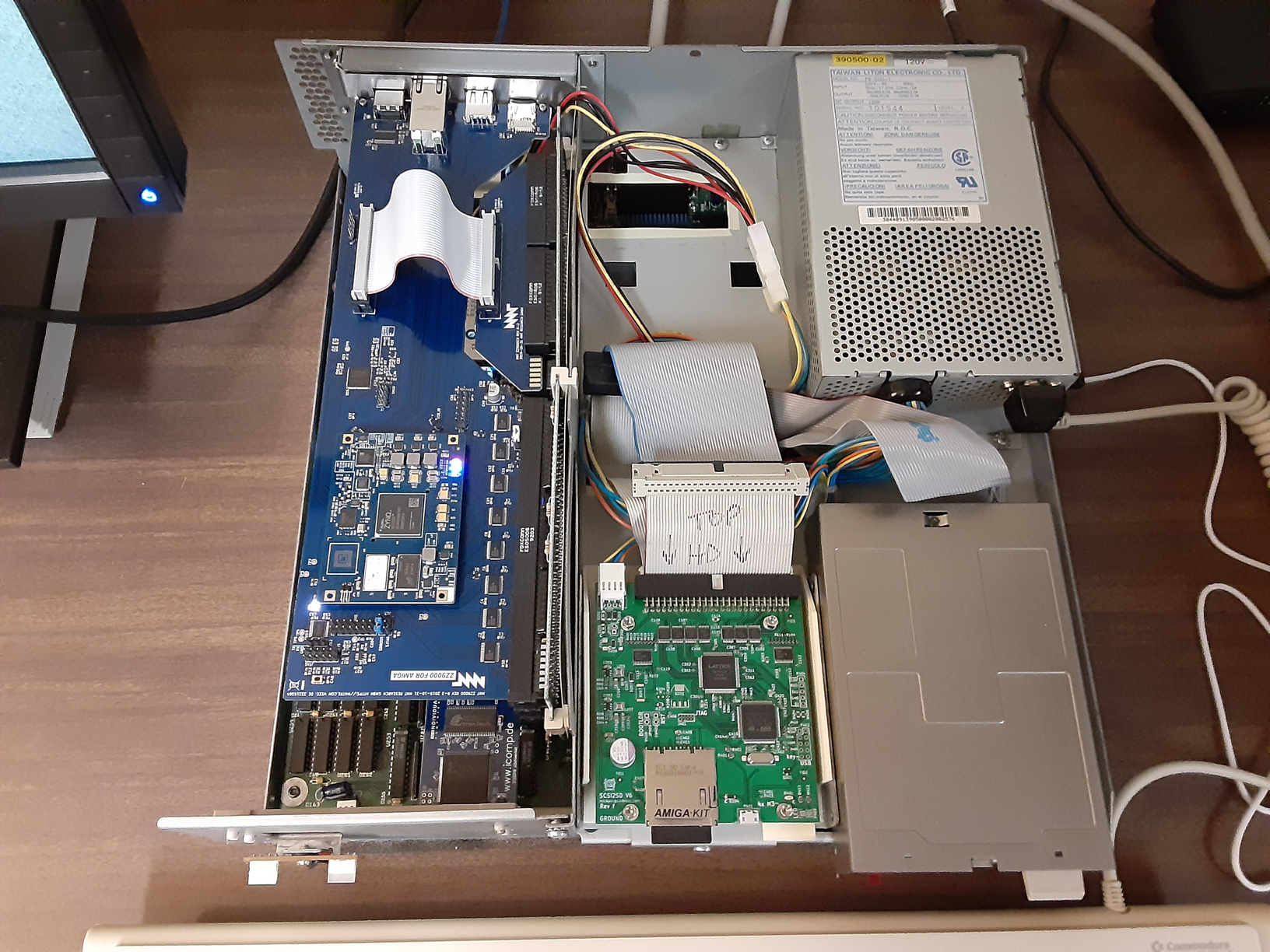

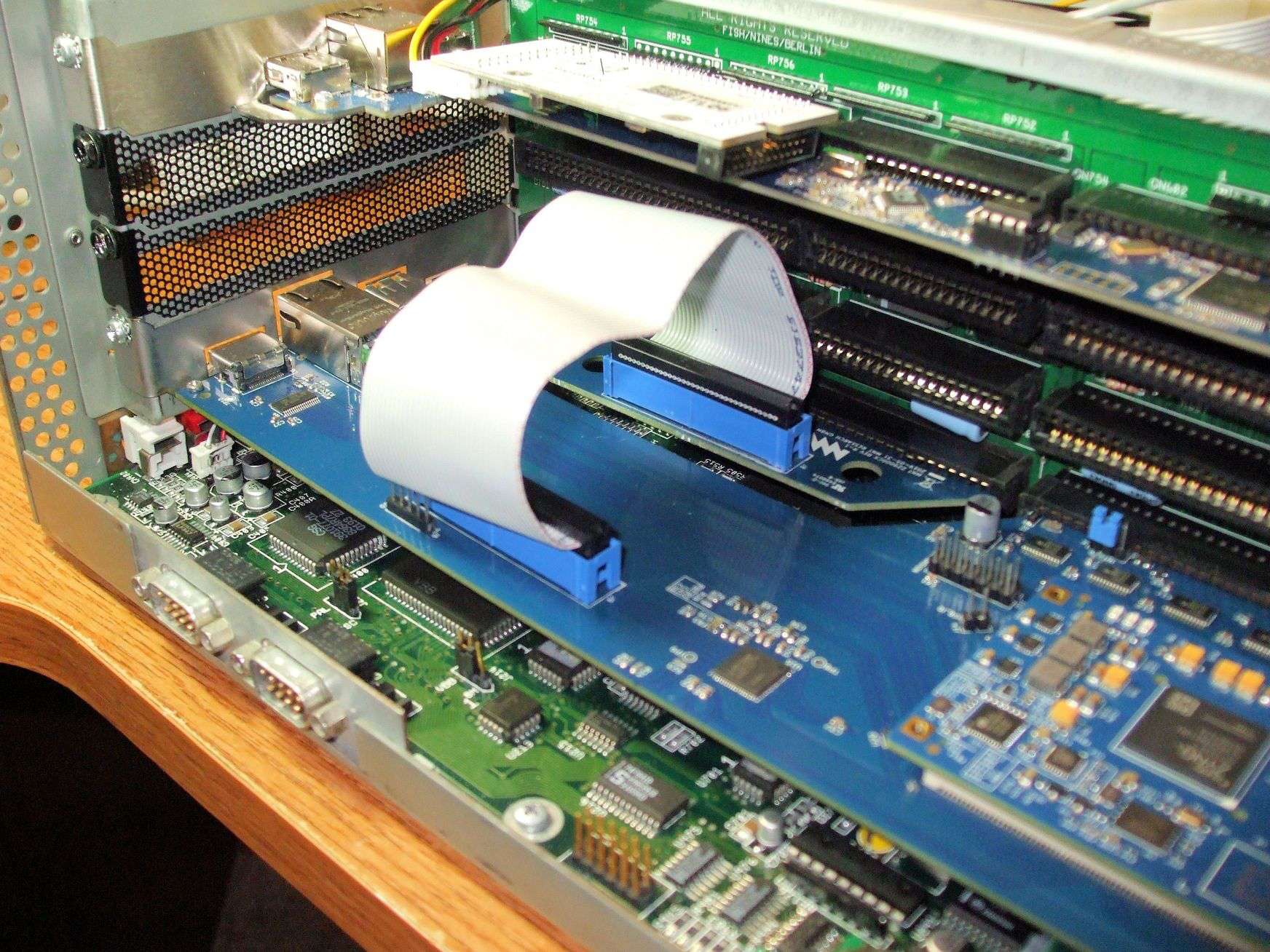

My ZZ9000 installations (both Amigas professionally recapped and repaired thanks to Anthony Hoffman).

Special thanks also go to a very helpful fellow Amiga user who recapped my A3000's power supply, and a previous coworker who very kindly (and carefully) cut the design error traces for me on both ZZ9000 boards.

Amiga 4000

• AmigaOS 3.2.2.1 (with 3.2.2 hardware ROM)
• Rev. B motherboard, 1992
• 2 MB Chip, 16 MB Fast RAM
• Super Buster rev. 11, socketed
• BFG9060 (rev. 0.2b), 50 MHz 68060 (rev. 6)
• ZZ9000 (batch 1) using 1.13 firmware and drivers
• ZZ9000AX audio card
• P96 v3.3.3
• Dell P2319H IPS LED monitor
• X-Surf 100 with RapidRoad USB
• 256 MB BigRamPlus
• 16 GB Disk-On-Module via A4000 motherboard IDE
• Chinon 1.76 MB internal high-density floppy disk drive
• Master-3A1 880 K external floppy disk drive

Amiga 3000

• AmigaOS 3.2.2.1 (with 3.2.2 hardware ROM)
• Rev. 9/03 motherboard, 1990
• 2 MB Chip, 8 MB Fast RAM
• Super Buster rev. 11, socketed
• A3660 (rev. 1.1), 50 MHz 68060 (rev. 5)
• ZZ9000 (batch 2) using 1.13 firmware and drivers
• ZZ9000AX audio card
• P96 v3.3.3
• Dell U2211H IPS TFT monitor
• X-Surf 100 with RapidRoad USB
• 256 MB BigRamPlus
• 16 GB SCSI2SD V6 Rev F, firmware v6.4.14 (May 14, 2022)
• Chinon 880 K internal floppy disk drive
• Master-3A1 880 K external floppy disk drive
